ON-OFF recessed led panel light
product

ON-OFF recessed led panel light

PREV:RA90 Led Panel LightNEXT:IP65 Panel Light
Parameter

Dimension(mm)

300x300mm 300X600mm  600X600 mm 300X1200mm  600X1200mm

LED Type

SMD4014

Power Consumption

36w / 40w /48W /60W

Luminous efficiency

100lm/w 120lm/w 130lm/w

Input Voltage

AC220-240V AC100-240V

Heat sink

6063 aluminum + optical PMMA

Driver

Philips/BOKE / Green So free flicker

CRI

>80

UGR

<22 / <19 / <16

Beam Angle

110°

Power Factor

>0.9

Working Voltage

DC30-42V

CCT

2800-3200K 4000-4500K 6000-6500K

Working Temperature

-40°C – + 55°C

Storage Temperature

-25°C – + 55°C

Installation

Embedded, Suspended, Surface mounted, Spring clip

IP Rating

IP20

Warranty

5 years

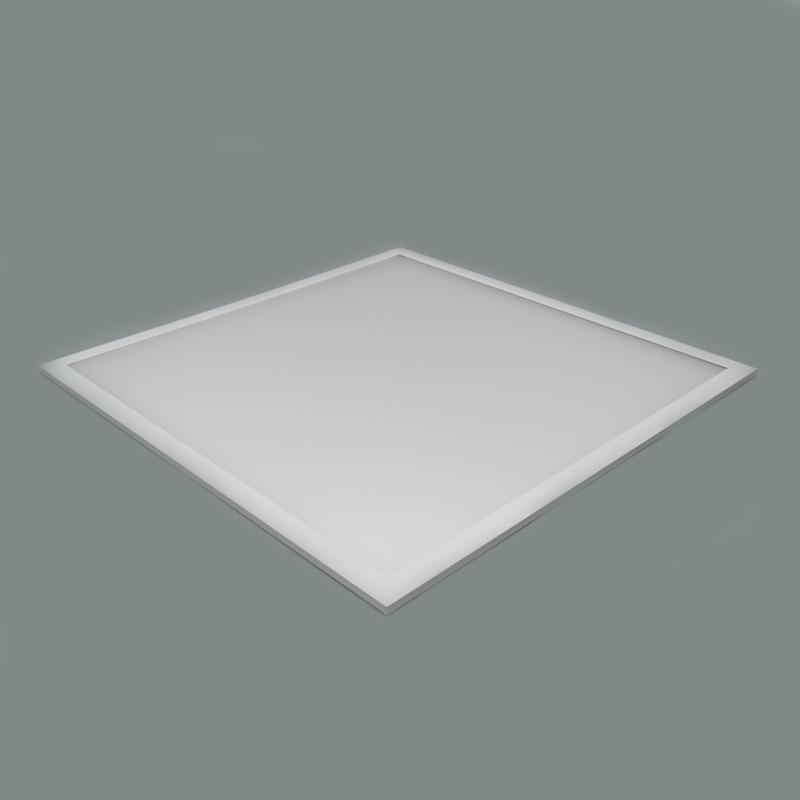

LED Panel 60×60 Product Benefits



FANCO  LED Panel 60×60 is only 9mm in thickness, it is made of 6063 aluminum frame, acrylic light guide plate,  diffusion plate, LED driver, back plate and SMD LEDs to deliver a smooth, flawless of illumination without visible bulbs or hot spots.

Get versatility in size and style with FANCO LED panel light, they are available in standard 300×300, 600×600, 1200×300 and 1200×600 sizes and are offered in recessed and surface mounted styles. Any other size and power can be Customized, FANCO light is sure to provide greater flexibility, brighter light and bigger savings!

Aluminum heat sink advantage: integration, a truly seamless profile, with elegant outlook, good heat dissipation and cheap price. All these features make it the most ideal model to make led panel light.







2×2 LED Panel Guide Plate with longer lifetime



PMMA is with excellent weather resistance, higher Surface Glossiness, and better high-temperature behavior. Silk print effect is excellent if you need to print your own logo and lamp parameters, PMMA is preferred.

PMMA board have good printability and sprayabilit, it can make ideal surface decorative effect process with appropriate print technology. Flame resistance.

FANCO only use PMMA Light guide plate with micro structure made of non-yellowing material for long lifetime, which total lamp can offer 3- 5 years warranty.

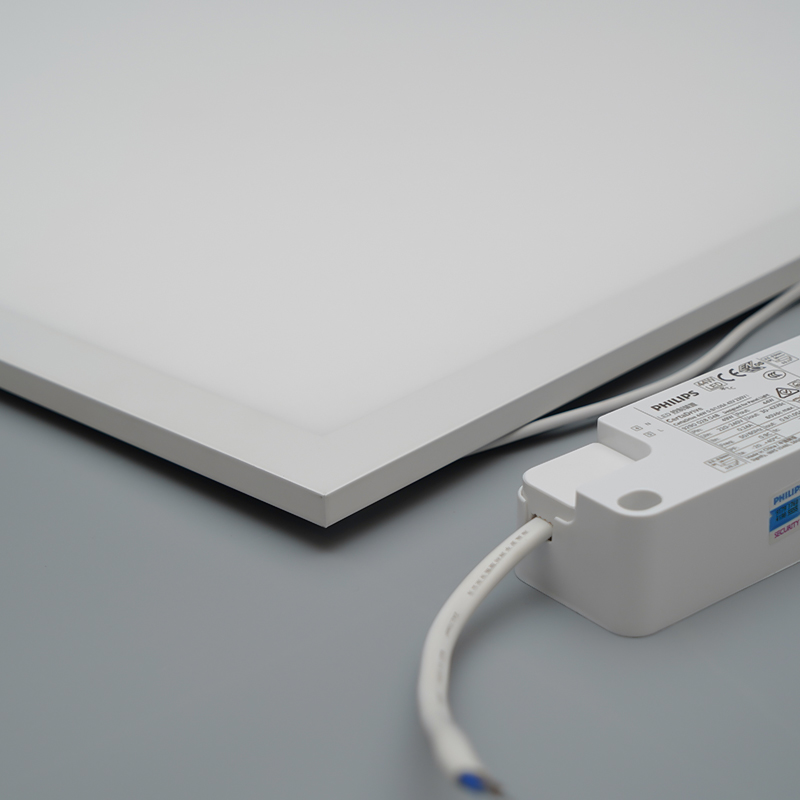

The LED Ceiling Panel Light 60×60 with best  driver



Driver plays a crucial role in the lifespan of led lighting, it's very important that a driver is selected that is matched to the lamp and to be illuminated.
When selecting an LED driver, total LED power per function, this is the key to determining LED driver topology.

The ambient temperature of the electronic components, Supported diagnostics and safety compliance: such as thermal warning, thermal shutdown, open circuit, short, over-current protection, single LED failures, under voltage and overvoltage on the booster, LED temperature monitoring etc… These are important factors

For these reason, FANCO  alway use stable and trustable driver,such as Philips,BOKE,LIFUD,Green so and so on.





Offer smart lighting solution



FANCO will provide one-stop smart lighting solutions,Tuya,Dali,ZigBee,motion sensor ,microwave sensor, daylight harvest sensor and other dimming methods like 0-10V and DALI dimmable can all be customized.







Installation Method



Hanging wire Aluminum frame Spring clip



Applications



The LED backlit panel light is suitable for office, meeting room, school, hospital, shopping mall, indoor public places, etc.





Package method:



Quality HIGHER
Service BETTER

Jiaxing Fanco Optoelectronic Co.. Ltd is famous ON-OFF recessed led panel light suppliers and ON-OFF recessed led panel light factory which was found in 2008. Company is located in Jiaxing, Zhejiang, China. With perfect hardware facilities, strong team for research and sales, FANCO persisst on the principle: Integrity Honest Trust. Let' s grow up together and create more value.

  • 1
  • 2
  • 3
  • 4

Benefits of Choosing Us

  • 1

    Stable quality

    The company was founded in 2012, and is engaged in the lighting industry for 9 years. And we’ve sold about 5,000,000pcs panel lamps all over the world.

  • 2

    Meet Different Needs

    From 2012 to 2021, we serve clients from over 30 countries, and are able to meet the needs from different countries and regions.

  • 3

    Cost-Effective

    Automated production lines and rigorous testing procedures ensure good quality of our products and the reduction of production costs.

  • 4

    Complete Inspection System

    Every single lamp is 100% checked and tested. Power on and off test, colorimetric test, luminous flux and electrical test provide guarantee of quality.

  • 5

    Fast Delivery

    We can produce 2,000-3,000pcs panel lamps per day.

  • 6

    Professional Sales Team

    We have professional training for our sales team every three month.
