OEM/ODM Blue Sky Panel Light Suppliers

Home / Our Products / Slim Led Panel Light / Blue Sky Panel Light
Home / Our Products / Slim Led Panel Light / Blue Sky Panel Light
product
Parameter

Dimension(mm)

600X600 mm

LED Type

SMD2835

Power Consumption

40w /48W /60W/72W

Luminous efficiency

100lm/w 120lm/w 130lm/w

Input Voltage

AC220-240V AC100-240V

Heat sink

6063 aluminum

Driver

Philips/BOKE / Green So free flicker

CRI

>80

UGR

<22

Beam Angle

110°

Power Factor

>0.9

Working Voltage

DC30-42V

CCT

2800-3200K 4000-4500K 6000-6500K

Working Temperature

-40°C – + 55°C

Storage Temperature

-25°C – + 55°C

Installation

Embedded, Suspended, Surface mounted, Spring clip

IP Rating

IP20

Warranty

3/5 years



LED Blue Sky Panel Light  Product Benefits

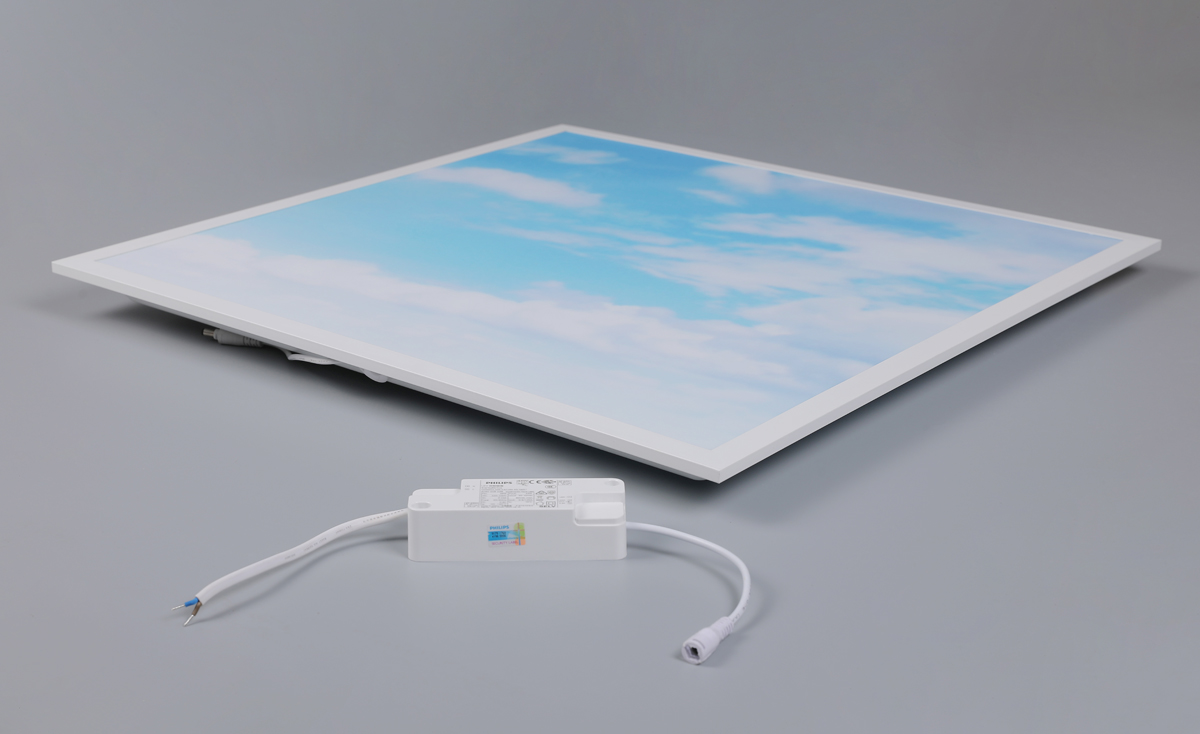

FANCO LED blue sky panel light 60×60 is made of 6063 aluminum frame, PS or PC diffusion plate, LED driver, back plate and SMD LEDs to deliver a smooth, flawless of illumination 。It can be supported by Tuya,Zigbee,Dali and other smart driver controller.

Get versatility in size and style with FANCO LED frame edge light , they are available in standard 600×600,300×300,300×600,300×1200,600×1200 and are offered in recessed and surface mounted styles. Any other size and power can be Customized, FANCO light is sure to provide greater flexibility, brighter light and bigger savings!

Aluminum heat sink advantage: integration, a truly seamless profile, with elegant outlook, good heat dissipation and cheap price. All these features make it the most ideal model to make led panel light.

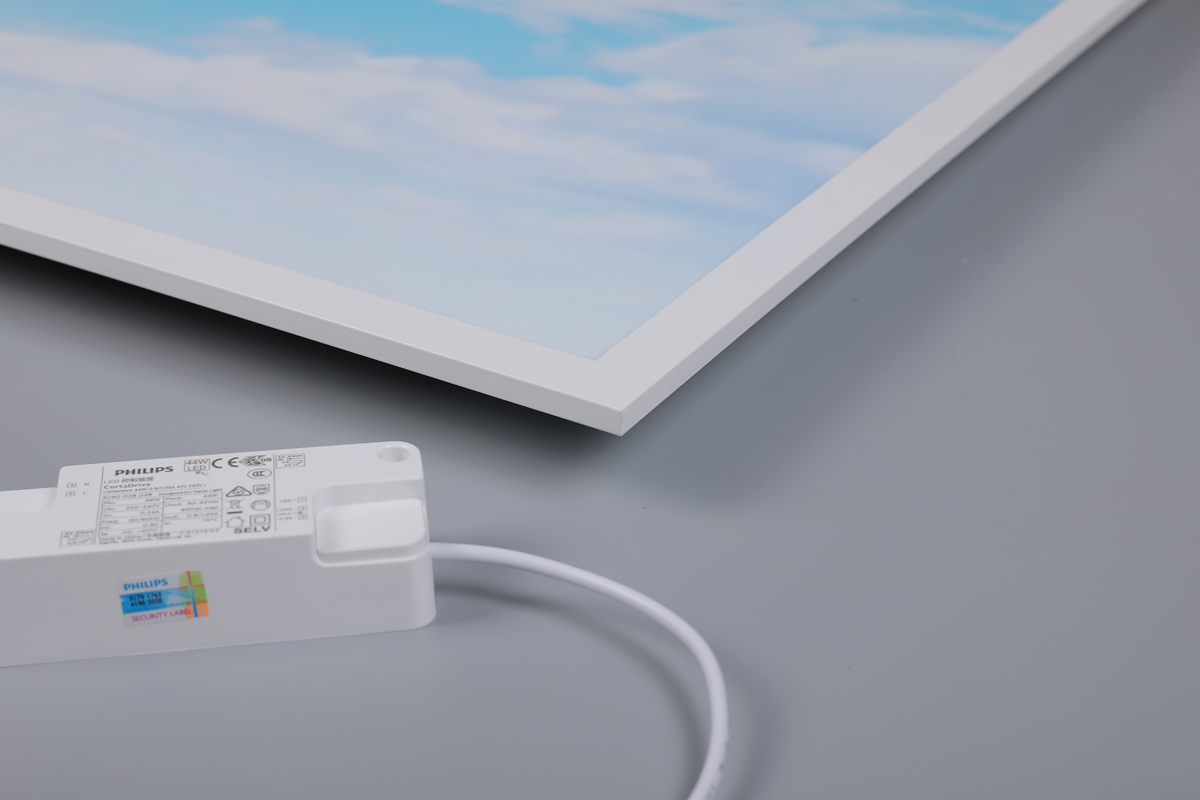

The LED blue sky panel light 60×60 with best driver

Driver plays a crucial role in the lifespan of led lighting, it's very important that a driver is selected that is matched to the lamp and to be illuminated.
When selecting an LED driver, total LED power per function, this is the key to determining LED driver topology.

The ambient temperature of the electronic components, Supported diagnostics and safety compliance: such as thermal warning, thermal shutdown, open circuit, short, over-current protection, single LED failures, under voltage and overvoltage on the booster, LED temperature monitoring etc… These are important factors

For these reason, FANCO  alway use stable and trustable driver,such as Philips,BOKE,LIFUD,Green so and so on.

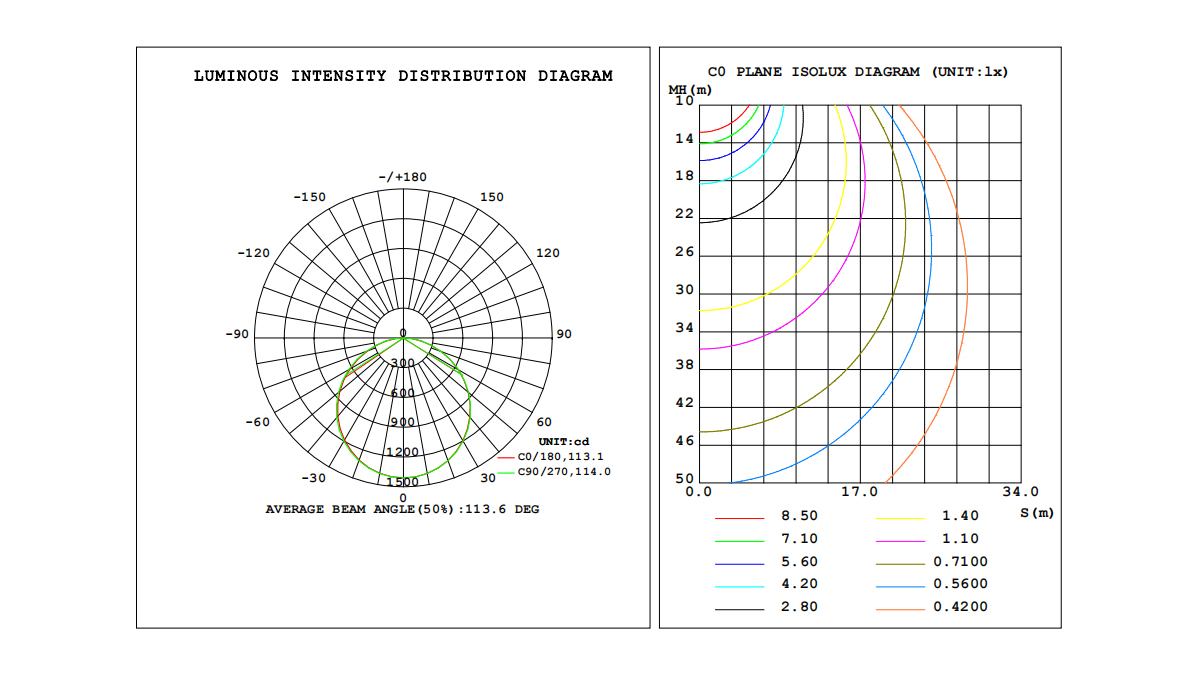

LED Blue Sky Panel light 60×60mm Photometer test





LED blue sky panel light from FANCO



FANCO will provide one-stop smart lighting solutions,Tuya,Dali,ZigBee,motion sensor ,microwave sensor, daylight harvest sensor and other dimming methods like 0-10V and DALI dimmable can all be customized.





Installation Method

Hanging wire Aluminum frame Spring clip



 Applications

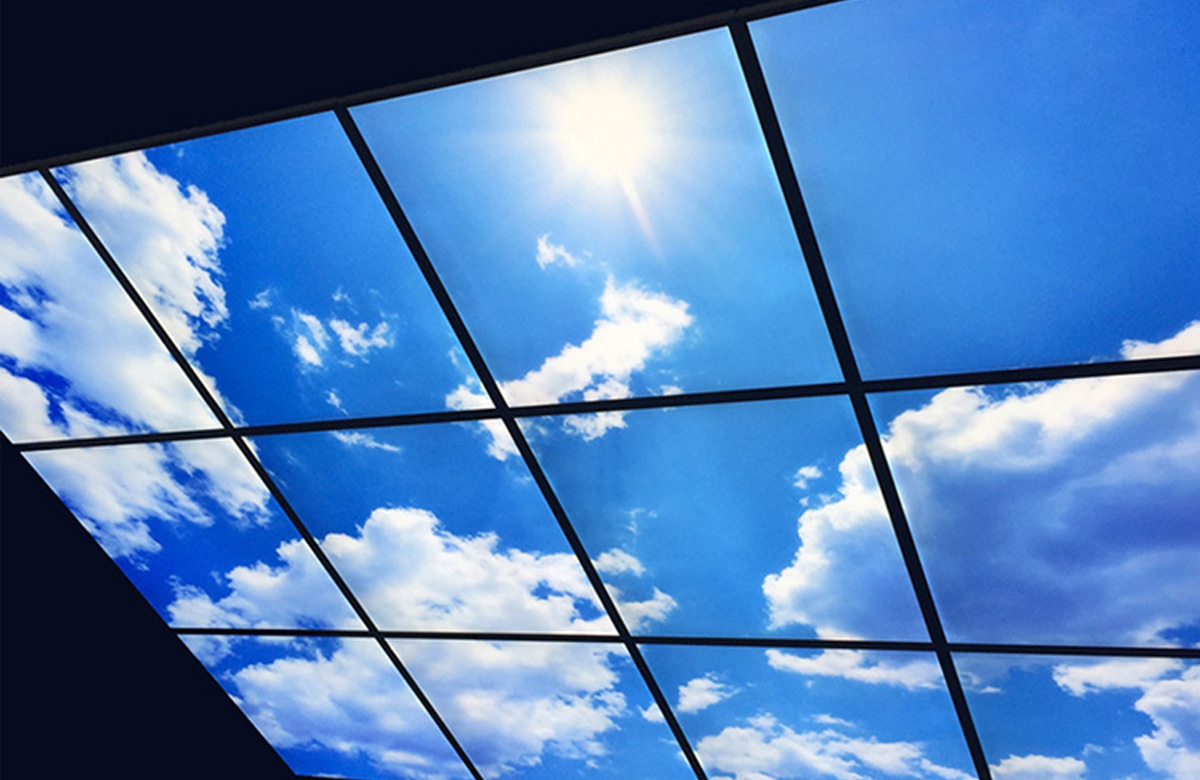

The LED blue sky panel light is suitable for office, meeting room, school, hospital, shopping mall, indoor public places, etc.
